Dell EMC des-1241 practice test

Question 1

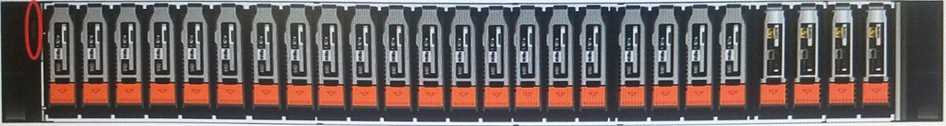

How is a defective embedded module displayed in Dell EMC PowerStore Manager?

• A. Orange with an empty state
• B. Orange with a faulted state
• C. Blue with a faulted state
• D. Blue with an empty state

Question 2

A Storage Administrator needs root access. What command needs to be run?

• A. svc_inject generate-key --root
• B. svc_inject -root
• C. sudo service
• D. su - root

Question 3

What is an alternative way to collect logs instead of using the Dell EMC PowerStore manager GUI?

• A. Data Collect using Service Container
• B. USB stick inserted into the system
• C. Data Collect using vCenter
• D. Discovery Utility

Question 4

A Storage Administrator notices a Critical alert present in Dell EMC PowerStore Manager relating to
data integrity. What action within the alert details slide-out panel is helpful in troubleshooting the
problem?

• A. Select the Gather Support Materials from Service and Support
• B. Access the Repair Flow link to schedule a support engagement
• C. Examine Notifications to obtain a list of corrective actions
• D. Re-engage support through previous listed Related Events

Question 5

How can the PUHC health check results be viewed?

• A. By accessing the Swagger UI
• B. From syslog server
• C. In Details of Appliances and Nodes
• D. From management DB

Question 6

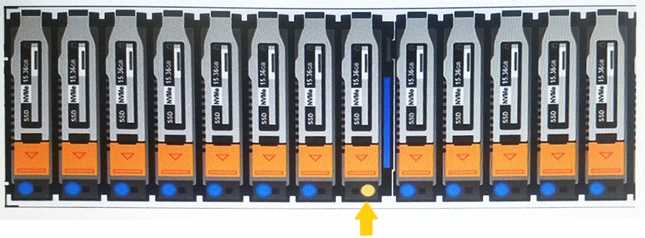

When looking at the base enclosure front view, what does a solid amber drive LED indicate?

• A. Discover new drive
• B. Rebuild activity
• C. Faulted drive
• D. Normal activity

Question 7

What describes the ICM and ICD networks?

• A. Address type is dynamic and automatically reconfigured on discovery results
• B. They are NOT encrypted
• C. Address type is persistent throughout the life of the cluster and CANNOT to be modified
• D. They are encrypted with IPsec

Question 8

What is the default log collection schedule?

• A. Weekly
• B. As scheduled during install
• C. Hourly
• D. Daily

Question 9

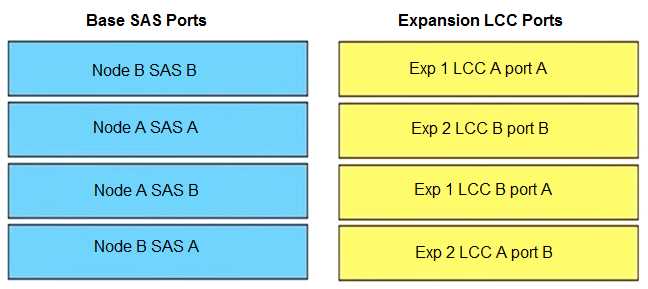

What describes the SAS cabling when adding an expansion enclosure to a Dell EMC PowerStore, for
each node and expansion enclosure side?

• A. SAS cabling goes from existing A ports to new В ports. At the last enclosure, SAS cabling returns from the A ports to the originating node’s B ports
• B. SAS cabling goes from existing A ports to new В ports. At the last enclosure, SAS cabling returns from the A ports to the alternate node’s В ports
• C. SAS cabling goes from existing В ports to new A ports. At the last enclosure, SAS cabling returns from the В ports to the alternate node’s A ports
• D. SAS cabling goes from existing В ports to new A ports. At the last enclosure, SAS cabling returns from the В ports to the originating node’s A ports

Question 10

A Storage Administrator ran a PSTCLI command on a Linux host. The error " -bash: pstcli: command
not found" appears. How is the problem resolved?

• A. Add the installation directory to the PATH variable on shell initialization file
• B. Install in default directory /opt/dellemc/pstcli-version/bin/
• C. Add /opt/dellemc/pstcli/bin/ in PSTCLI.sh
• D. Run rpm -ihv pstcli to reinstall the PSTCLI software on the Linux host

Question 11

In which step of the ICW can the configuration details be exported?

• A. License Configuration
• B. Support Assist
• C. Cluster Details
• D. Cluster Configuration

Question 12

When a Dell EMC PowerStore node powers up in service mode, what are the commands and
sequence used from the appliance SSH client to restore the node back to normal?
A.
svc_rescue_state clear
svc_node reboot
B.
svc_node restart
svc_rescue_state start
C.
svc_rescue_state normal
svc_node start
D.
svc_node shutdown
svc_rescue_state clear

Question 13

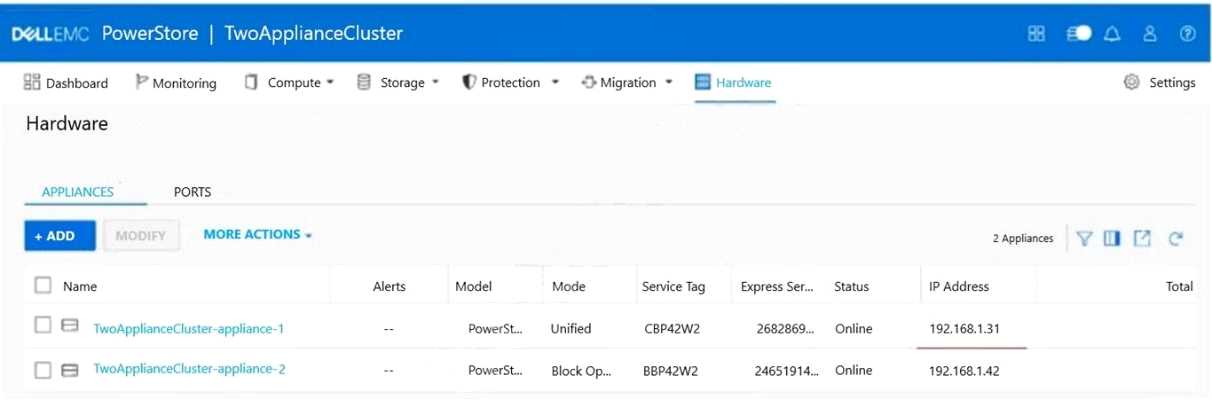

Refer to the exhibit.

Which column indicates the master appliance?

• A. IP Address
• B. Model
• C. Service Tag
• D. Mode

Question 14

What is achieved when the Rapid Spanning Tree Protocol (RSTP) is enabled on a Dell EMC
PowerStore network configuration?

• A. Redundant connectivity between data switches
• B. Communication between data switches and management switch on PowerStore T
• C. Management between appliance and vCenter on PowerStore X
• D. Fault tolerance between appliances in a PowerStore cluster

Question 15

How is a service laptop IP configured to connect to the Service LAN port of a Dell EMC PowerStore
node?

• A. Static IP: 128.221.1.249 and netmask: 255.255.255.0
• B. Obtain IP address from DHCP on PowerStore
• C. Static IP: 169.254.1.249 and netmask: 255.0.0.0
• D. Leave IP address and netmask unconfigured
